本文档为吃豆人的开发指南。本文档基于热身赛sdk进行开发，sdk的使用说明可以参考引导文档sdk部分的对应文档。
我们首先实现一个能够在平台上运行的agent。
根据sdk的文档，我们需要实现一个ai函数，该函数接收一个GameState类型的对象，返回一个长度为1的数组，数组元素为[0, 4]之间的整数。我们可以使用随机采样实现该函数：
# ai.py
def ai_func(game_state: GameState):
"""
Args:
game_state (GameState): 当前的游戏局面对象
Returns:
list: 包含一个操作序号的数组，范围在[0, 4]之间
"""
action = random.randint(0, 4)
return [action]
我们首先实现一个能够在平台上运行的agent。
根据sdk的文档，我们需要实现一个ai函数，该函数接收一个GameState类型的对象，返回一个长度为3的数组，数组元素为[0, 4]之间的整数。我们可以使用随机采样实现该函数：
# ai.py
def ai(game_state: GameState):
"""
Args:
game_state (GameState): 当前的游戏局面对象
Returns:
list: 包含一个操作序号的数组，范围在[0, 4]之间
"""
action = [random.randint(0, 4) for _ in range(3)]
return action
此时我们已经实现了一个能运行的ai，但是很明显随机移动的ai不足以取得好的效果，下面我们实现一个有策略的ai。
我们已经在gamedata.py文件中定义了很多封装与抽象，你可以直接使用来简化你的代码逻辑。

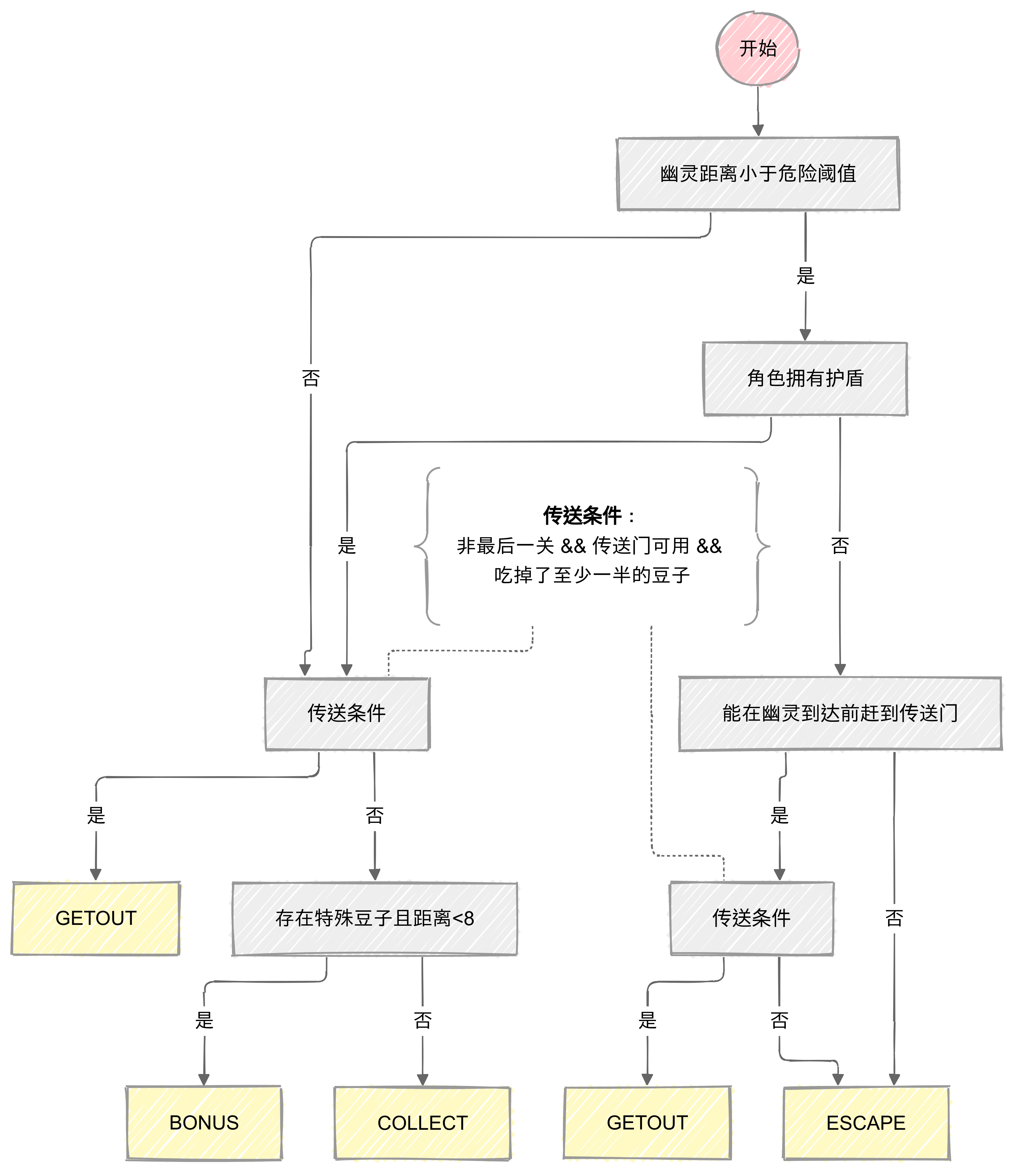

我们可以实现一个基于状态机的AI来控制吃豆人。这个AI会根据当前游戏局面，动态切换不同的行为状态，并使用评分函数来选择最优的移动方向。
主要的状态包括:
AI的主要功能包括:
完整的代码实现如下:
from core.gamedata import *
import numpy as np
from enum import Enum
from collections import deque
class AIState(Enum):
COLLECT = "COLLECT" # 收集普通豆子模式
ESCAPE = "ESCAPE" # 逃离幽灵模式
BONUS = "BONUS" # 收集特殊豆子模式
GETOUT = "GETOUT" # 逃离传送门模式
class PacmanAI:
def __init__(self):
self.board_size = None
self.current_state = AIState.COLLECT
self.path = []
# 历史记录
self.history = deque(maxlen=20)
self.init_bean_num = 0
# 动态参数
self.GHOST_DANGER_DISTANCE = 5
self.BONUS_BEAN_PRIORITY = 2.0
# 状态权重
self.weights = {
AIState.COLLECT: {"ghost": 1.0, "bean": 1.5, "bonus": 1.5},
AIState.ESCAPE: {"ghost": 3.0, "bean": 0.8, "bonus": 1.0},
AIState.BONUS: {"ghost": 0.8, "bean": 1.5, "bonus": 2.0},
AIState.GETOUT: {"ghost": 1, "bean": 1, "bonus": 1},
}
# 特殊豆子价值
self.bean_values = {
3: 4.0, # BONUS_BEAN
4: 3.0, # SPEED_BEAN
5: 2.5, # MAGNET_BEAN
6: 3.0, # SHIELD_BEAN
7: 2.5, # DOUBLE_BEAN
}
def count_remaining_bean(self, game_state: GameState):
"""计算剩余豆子数量"""
cnt = 0
for i in range(game_state.board_size):
for j in range(game_state.board_size):
if game_state.board[i][j] in range(2, 8):
cnt += 1
return cnt
def point_to_vector_projection_distance(self, point, vector_start, vector_end):
"""计算点到向量的投影距离"""
vector = vector_end - vector_start
point_vector = point - vector_start
vector_length = np.linalg.norm(vector)
if vector_length == 0:
return np.linalg.norm(point_vector)
vector_unit = vector / vector_length
projection_length = np.dot(point_vector, vector_unit)
projection_vector = vector_unit * projection_length
projection_point = vector_start + projection_vector
return np.linalg.norm(point - projection_point)
def can_getout_before_ghosts(self, game_state: GameState):
"""判断是否能在幽灵到达前到达传送门"""
pacman_pos = np.array(game_state.pacman_pos)
portal_pos = np.array(game_state.portal_coord)
ghosts_pos = np.array(game_state.ghosts_pos)
dist_to_portal = np.linalg.norm(pacman_pos - portal_pos)
ghosts_projection_dist_to_catch = [
self.point_to_vector_projection_distance(ghost_pos, pacman_pos, portal_pos)
for ghost_pos in ghosts_pos
]
return dist_to_portal < min(ghosts_projection_dist_to_catch) - 1
def manhattan_distance(self, pos1, pos2):
"""计算曼哈顿距离"""
return abs(pos1[0] - pos2[0]) + abs(pos1[1] - pos2[1])
def update_state(self, game_state: GameState):
"""更新游戏状态"""
pacman_pos = np.array(game_state.pacman_pos)
ghosts_pos = np.array(game_state.ghosts_pos)
# 计算威胁程度
ghost_distances = [
len(
self.a_star_search(
np.array(pacman_pos), np.array(ghost_pos), game_state
)
)
for ghost_pos in game_state.ghosts_pos
]
min_ghost_distance = min(ghost_distances)
# 寻找特殊豆子
special_bean = self.find_nearest_special_bean(game_state)
# 检查是否有护盾状态
has_shield = game_state.pacman_skill_status[Skill.SHIELD.value] > 0
# 状态机转换逻辑
if min_ghost_distance < self.GHOST_DANGER_DISTANCE and not has_shield:
# 如果可以在幽灵到达前到达传送门，优先选择GETOUT
if (
game_state.level < 3
and self.can_getout_before_ghosts(game_state)
and game_state.portal_available
and self.count_remaining_bean(game_state) < self.init_bean_num * 0.5
):
self.current_state = AIState.GETOUT
else:
self.current_state = AIState.ESCAPE
elif (
game_state.level < 3
and game_state.portal_available
and self.count_remaining_bean(game_state) < self.init_bean_num * 0.5
):
self.current_state = AIState.GETOUT
elif special_bean and special_bean[1] < 8:
self.current_state = AIState.BONUS
else:
self.current_state = AIState.COLLECT
def find_nearest_special_bean(self, game_state):
"""寻找最近的特殊豆子"""
pacman_pos = np.array(game_state.pacman_pos)
special_beans = []
for i in range(game_state.board_size):
for j in range(game_state.board_size):
bean_type = game_state.board[i][j]
if bean_type >= 3 and bean_type <= 7: # 特殊豆子
pos = np.array([i, j])
dist = np.linalg.norm(pacman_pos - pos)
value = self.bean_values[bean_type]
score = value / (dist + 1) # 考虑距离和价值的综合评分
special_beans.append((pos, dist, score))
if special_beans:
# 按综合评分排序
best_bean = max(special_beans, key=lambda x: x[2])
return (best_bean[0], best_bean[1])
return None
def a_star_search(self, start: np.ndarray, goal: np.ndarray, game_state: GameState):
"""A*搜索路径"""
open_set = set()
open_set.add(tuple(start))
came_from = {}
g_score = {tuple(start): 0}
f_score = {tuple(start): self.manhattan_distance(start, goal)}
while open_set:
current = min(open_set, key=lambda x: f_score.get(x, float("inf")))
if current == tuple(goal):
path = []
while current in came_from:
path.append(current)
current = came_from[current]
path.reverse()
return path
open_set.remove(current)
for direction, _ in self.get_valid_moves(list(current), game_state):
neighbor = tuple(direction)
tentative_g_score = g_score[current] + 1
if tentative_g_score < g_score.get(neighbor, float("inf")):
came_from[neighbor] = current
g_score[neighbor] = tentative_g_score
f_score[neighbor] = tentative_g_score + self.manhattan_distance(
neighbor, goal
)
if neighbor not in open_set:
open_set.add(neighbor)
return []
def evaluate_position(self, pos, game_state):
"""评估位置的价值"""
pacman_pos = np.array(game_state.pacman_pos)
weights = self.weights[self.current_state]
ghost_distances = [
len(self.a_star_search(pos, np.array(ghost_pos), game_state))
for ghost_pos in game_state.ghosts_pos
]
min_ghost_distance = min(ghost_distances)
ghost_score = (-4) * weights["ghost"] / (min_ghost_distance + 1)
# 计算周围豆子的价值
bean_value = 0
scan_range = 5
for dx in range(-scan_range, scan_range + 1):
for dy in range(-scan_range, scan_range + 1):
new_x, new_y = int(pos[0] + dx), int(pos[1] + dy)
if (
0 <= new_x < game_state.board_size
and 0 <= new_y < game_state.board_size
):
bean_type = game_state.board[new_x][new_y]
if bean_type in BEANS_ITERATOR: # 有豆子
distance = abs(dx) + abs(dy)
if bean_type in SPECIAL_BEANS_ITERATOR: # 特殊豆子
bean_value += self.bean_values[bean_type] / (distance + 1)
elif bean_type == Space.REGULAR_BEAN.value: # 普通豆子
bean_value += 1 / (distance + 1)
# 避免重复访问
pos_tuple = tuple(pos)
repeat_penalty = 0
visit_count = self.history.count(pos_tuple)
repeat_penalty = -8 * visit_count
final_score = ghost_score + bean_value * weights["bean"] + repeat_penalty
# 如果是逃离模式，确保远离幽灵
if self.current_state == AIState.ESCAPE:
if min_ghost_distance < self.GHOST_DANGER_DISTANCE:
final_score -= (self.GHOST_DANGER_DISTANCE - min_ghost_distance) * 10
# 如果是GETOUT模式，确保尽快到达传送门
if self.current_state == AIState.GETOUT:
portal_pos = np.array(game_state.portal_coord)
dist_to_portal = np.linalg.norm(pos - portal_pos)
final_score += 30 / (dist_to_portal + 1)
return final_score
def get_valid_moves(self, pos, game_state):
"""获取有效的移动方向"""
moves = []
directions = [
(np.array(list(Update.UP.value)), Direction.UP.value), # UP
(np.array(list(Update.LEFT.value)), Direction.LEFT.value), # LEFT
(np.array(list(Update.DOWN.value)), Direction.DOWN.value), # DOWN
(np.array(list(Update.RIGHT.value)), Direction.RIGHT.value), # RIGHT
]
for direction, move_num in directions:
new_pos = pos + direction
if self.is_valid_position(new_pos, game_state):
moves.append((new_pos, move_num))
return moves
def is_valid_position(self, pos, game_state):
"""检查位置是否有效"""
x, y = int(pos[0]), int(pos[1])
if 0 <= x < game_state.board_size and 0 <= y < game_state.board_size:
if self.current_state != AIState.GETOUT:
if game_state.board[x][y] == Space.PORTAL.value:
return False
if game_state.board[x][y] != Space.WALL.value:
return True
return False
def choose_move(self, game_state: GameState):
"""选择移动方向"""
# 初始化
if game_state.round == 1:
self.init_bean_num = self.count_remaining_bean(game_state)
self.board_size = game_state.board_size
self.update_state(game_state)
pacman_pos = np.array(game_state.pacman_pos)
valid_moves = self.get_valid_moves(pacman_pos, game_state)
# 评估每个可能的移动
move_scores = []
for new_pos, move_num in valid_moves:
score = self.evaluate_position(new_pos, game_state)
move_scores.append((score, move_num))
# 选择最佳移动
if move_scores:
best_score, best_move = max(move_scores, key=lambda x: x[0])
# 更新历史记录
self.history.append(tuple(pacman_pos))
return [best_move]
return [Direction.STAY.value] # 默认停留
ai_func = PacmanAI().choose_move
__all__ = ["ai_func"]
注意：按照要求，我们的choose_move函数返回一个长度为1的列表，并自定义导出名称为ai_func。
因为幽灵控制者能够控制多个幽灵，所以可以对不同的幽灵构造不同的策略，达到围堵吃豆人的目的。
幽灵AI的主要策略包括:
幽灵1(Ghost 0):
幽灵2(Ghost 1):
幽灵3(Ghost 2):
通过以上策略,三个幽灵可以有效配合围堵吃豆人。
from core.gamedata import *
import random
import numpy as np
def parse(x: tuple):
if x == (0, 0):
return Direction.STAY.value
if x == (1, 0):
return Direction.UP.value
if x == (-1, 0):
return Direction.DOWN.value
if x == (0, 1):
return Direction.RIGHT.value
if x == (0, -1):
return Direction.LEFT.value
class GhostAI:
def __init__(self):
self.position_history = {0: [], 1: [], 2: []}
self.history_length = 5
def manhattan_distance(self, pos1, pos2):
return abs(pos1[0] - pos2[0]) + abs(pos1[1] - pos2[1])
def get_valid_moves(self, pos, game_state):
valid_moves = []
directions = [
([1, 0], 1), # UP
([-1, 0], 3), # DOWN
([0, -1], 2), # LEFT
([0, 1], 4), # RIGHT
]
for direction, move_value in directions:
new_pos = [pos[0] + direction[0], pos[1] + direction[1]]
if (
0 <= new_pos[0] < game_state.board_size
and 0 <= new_pos[1] < game_state.board_size
and game_state.board[new_pos[0]][new_pos[1]] != 0
):
valid_moves.append((new_pos, move_value))
return valid_moves
def a_star_search(self, start: np.ndarray, goal: np.ndarray, game_state: GameState):
open_set = set()
open_set.add(tuple(start))
came_from = {}
g_score = {tuple(start): 0}
f_score = {tuple(start): self.manhattan_distance(start, goal)}
while open_set:
current = min(open_set, key=lambda x: f_score.get(x, float("inf")))
if current == tuple(goal):
path = []
while current in came_from:
path.append(current)
current = came_from[current]
path.reverse()
return path
open_set.remove(current)
for direction, _ in self.get_valid_moves(list(current), game_state):
neighbor = tuple(direction)
tentative_g_score = g_score[current] + 1
if tentative_g_score < g_score.get(neighbor, float("inf")):
came_from[neighbor] = current
g_score[neighbor] = tentative_g_score
f_score[neighbor] = tentative_g_score + self.manhattan_distance(
neighbor, goal
)
if neighbor not in open_set:
open_set.add(neighbor)
return []
def calculate_stagnation_penalty(self, new_pos, ghost_id):
if not self.position_history[ghost_id]:
return 0
repeat_count = sum(
1
for pos in self.position_history[ghost_id]
if pos[0] == new_pos[0] and pos[1] == new_pos[1]
)
return repeat_count * 2
def update_history(self, ghost_id, new_pos):
self.position_history[ghost_id].append(new_pos)
if len(self.position_history[ghost_id]) > self.history_length:
self.position_history[ghost_id].pop(0)
def choose_moves(self, game_state: GameState):
moves = []
pacman_pos = game_state.pacman_pos
for ghost_id in range(3):
current_pos = game_state.ghosts_pos[ghost_id]
valid_moves = self.get_valid_moves(current_pos, game_state)
if not valid_moves:
moves.append(Direction.STAY.value)
continue
# 计算到吃豆人的距离
a_star_path = self.a_star_search(current_pos, pacman_pos, game_state)
distance_to_pacman = len(a_star_path) if a_star_path else float("inf")
# 如果距离很近（比如小于3），直接追击
if distance_to_pacman <= 3:
best_move = (
a_star_path[0],
parse(
(
a_star_path[0][0] - current_pos[0],
a_star_path[0][1] - current_pos[1],
)
),
)
else:
# 距离较远时使用更复杂的策略
target_pos = pacman_pos
# 不同幽灵的策略
if ghost_id == 0:
# 通过A*寻路算法直接追击
pass
elif ghost_id == 1:
if (
current_pos[0] == game_state.ghosts_pos[0][0]
and current_pos[1] == game_state.ghosts_pos[0][1]
):
# 第二个幽灵与第一个幽灵重合时，随机移动
best_move = random.choice(valid_moves)
self.update_history(ghost_id, best_move[0])
moves.append(best_move[1])
continue
# 预测吃豆人移动方向
dx = pacman_pos[0] - current_pos[0]
dy = pacman_pos[1] - current_pos[1]
predicted_x = pacman_pos[0] + (1 if dx > 0 else -1 if dx < 0 else 0)
predicted_y = pacman_pos[1] + (1 if dy > 0 else -1 if dy < 0 else 0)
if (
0 <= predicted_x < game_state.board_size
and 0 <= predicted_y < game_state.board_size
and game_state.board[predicted_x][predicted_y] != 0
):
target_pos = np.array([predicted_x, predicted_y])
else:
if (
current_pos[0] == game_state.ghosts_pos[0][0]
and current_pos[1] == game_state.ghosts_pos[0][1]
) or (
current_pos[0] == game_state.ghosts_pos[1][0]
and current_pos[1] == game_state.ghosts_pos[1][1]
):
# 第三个幽灵与第一个或第二个幽灵重合时，随机移动
best_move = random.choice(valid_moves)
self.update_history(ghost_id, best_move[0])
moves.append(best_move[1])
continue
# 尝试切断路线
other_ghost = game_state.ghosts_pos[0] # 使用第一个幽灵作为参考
dx = pacman_pos[0] - other_ghost[0]
dy = pacman_pos[1] - other_ghost[1]
intercept_x = pacman_pos[0] + (1 if dx > 0 else -1 if dx < 0 else 0)
intercept_y = pacman_pos[1] + (1 if dy > 0 else -1 if dy < 0 else 0)
intercept_x = max(0, min(intercept_x, game_state.board_size - 1))
intercept_y = max(0, min(intercept_y, game_state.board_size - 1))
if game_state.board[intercept_x][intercept_y] != 0:
target_pos = np.array([intercept_x, intercept_y])
path = self.a_star_search(current_pos, target_pos, game_state)
if path:
best_move = (
path[0],
parse(
(path[0][0] - current_pos[0], path[0][1] - current_pos[1])
),
)
else:
best_move = min(
valid_moves,
key=lambda x: self.manhattan_distance(x[0], pacman_pos),
)
self.update_history(ghost_id, best_move[0])
moves.append(best_move[1])
return moves
ai_func = GhostAI().choose_moves
__all__ = ["ai_func"]
